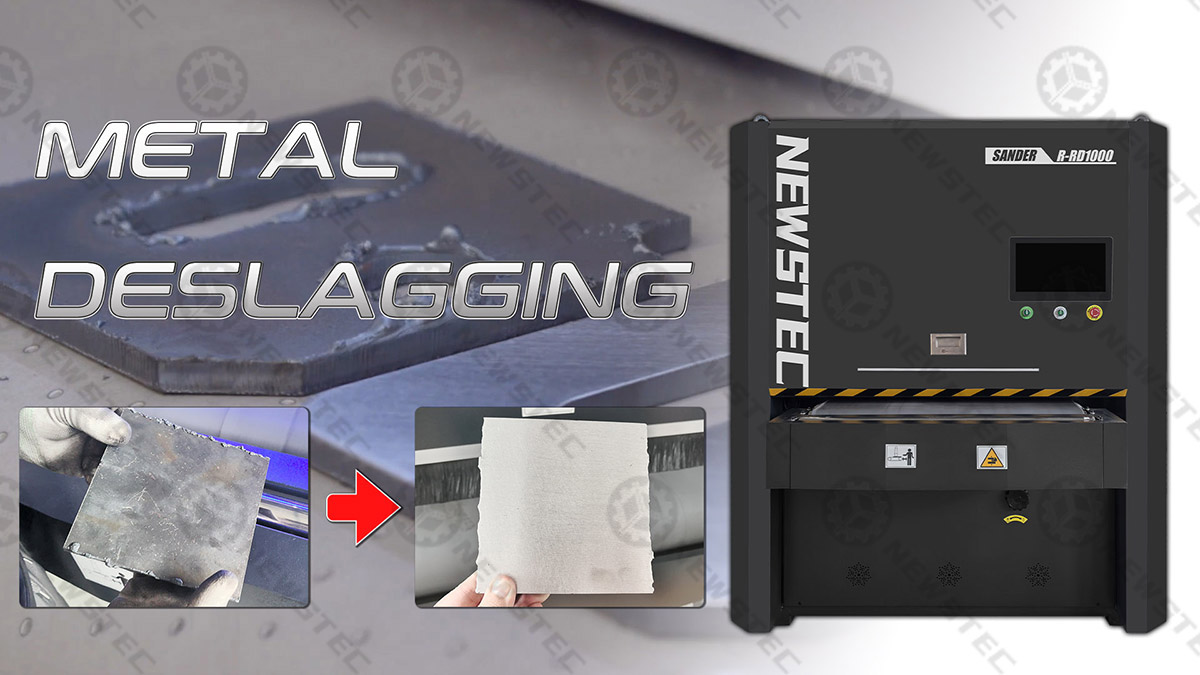

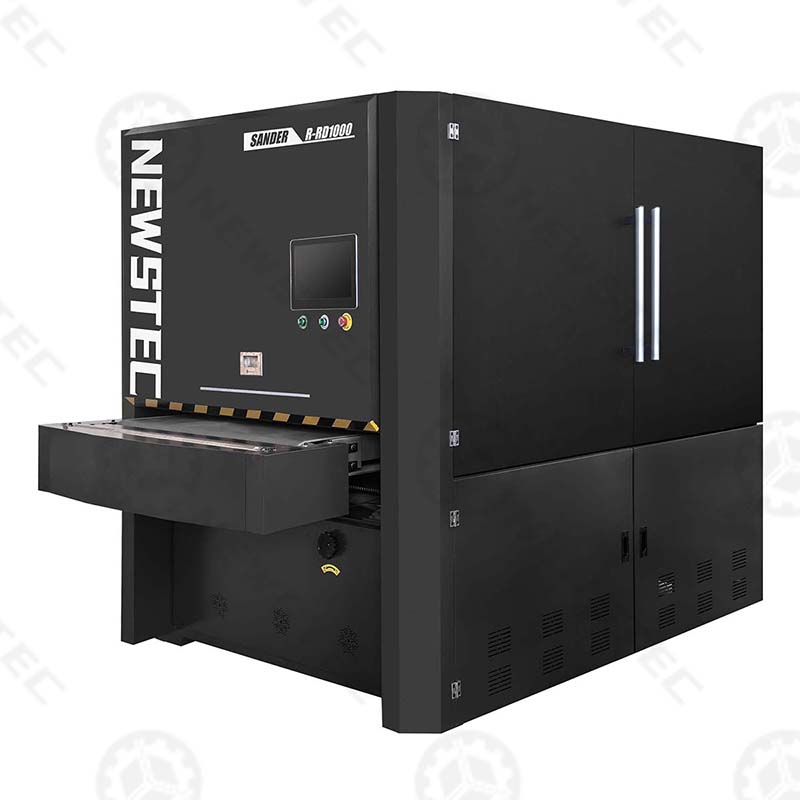

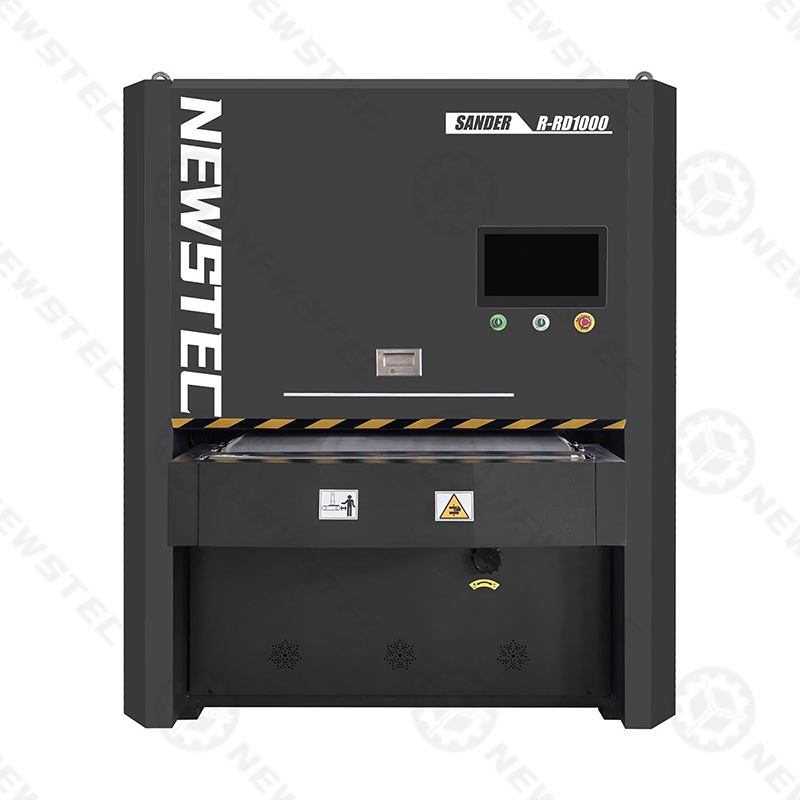

A metal deslagging machine, also known as a slag removal machine, is used to remove slag (excess material) from metal parts, particularly after processes
like plasma or flame cutting. These machines are crucial for achieving a smooth, clean finish and preparing metal components for subsequent manufacturing steps.
Suitable for slag removal and surface grinding of thick metal plates

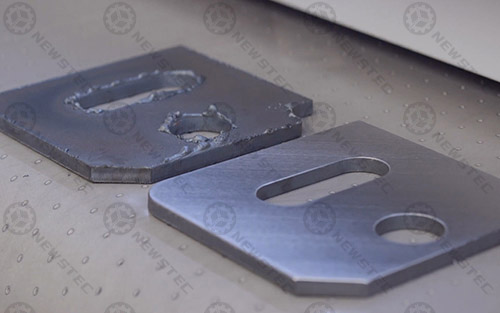

Removal of slag produced by plasma and flame cutting and laser cutting

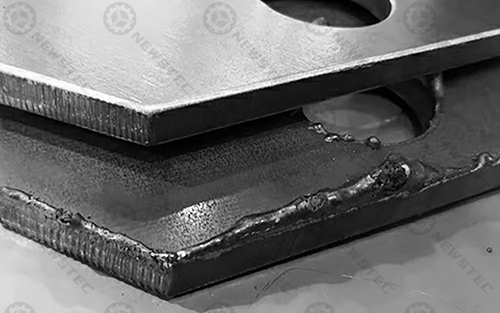

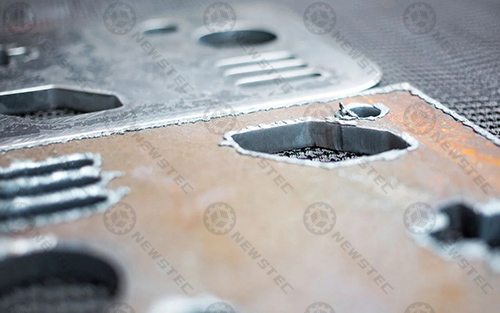

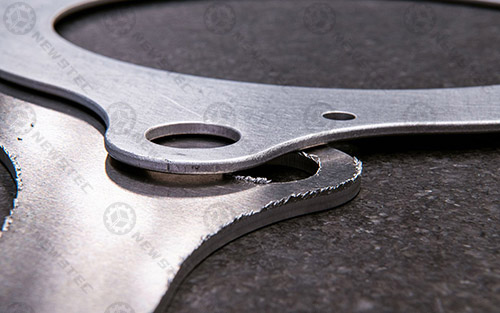

Removal of burrs and slag on metal plates,
Removal of surface oxides Precision grinding
Achieve high-quality metal surface treatment

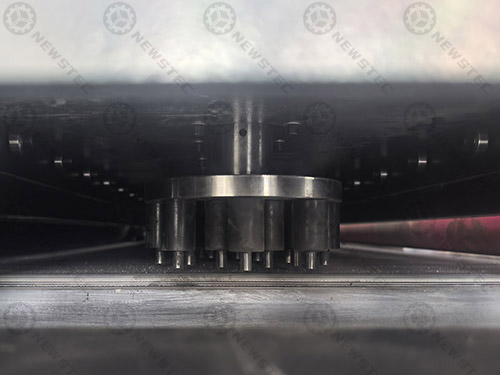

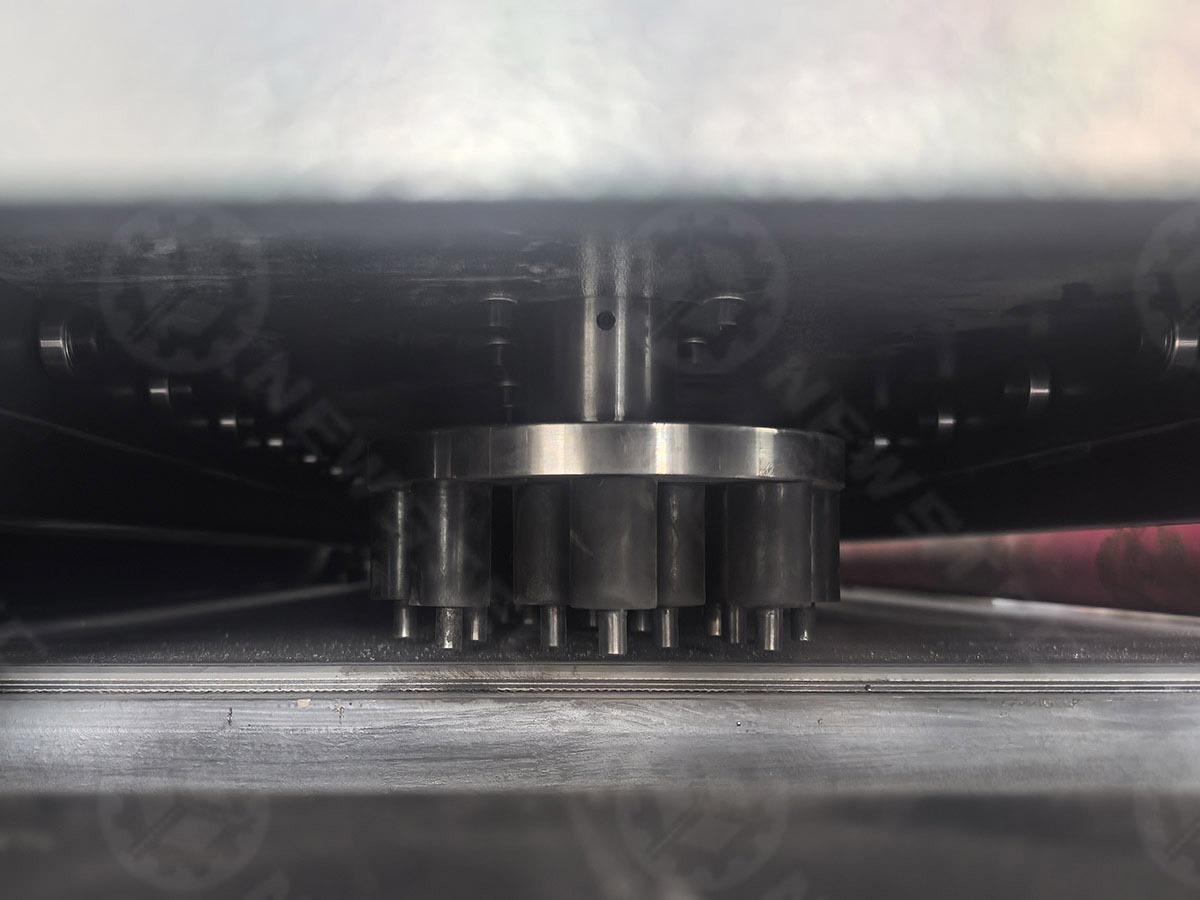

 | HAMMER DISC Developed for removing slag from both sides of thick plate parts. It is ideal for flame cutting, plasma cutting and laser cutting of slag parts. Use the slag hammer to remove slag, saving time and manpower. |

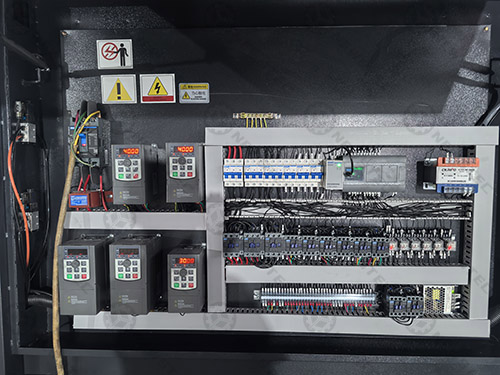

INTERNAL CIRCUITAIl the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter. |  |

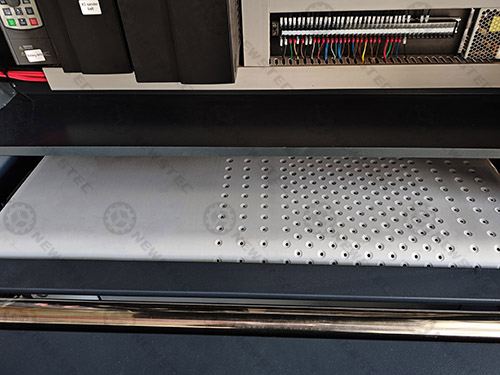

| VACUUM AND MAGNETIC WORKBENCH Safe adsorption, uniform suction, stable workpiece, improve processing accuracy, improve grinding efficiency, complete the surface processing of metal sheet. |

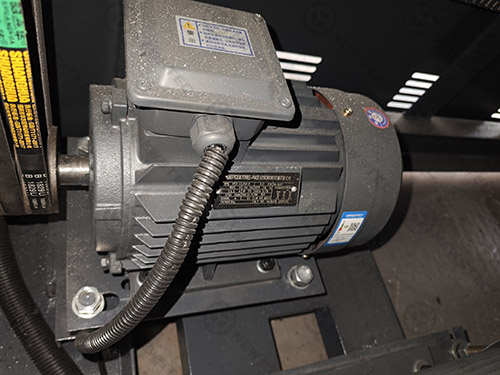

MOTORS sanding machine adopts copper coremotor, stable and durable long servicelife |
|
Working width（mm） | 1300 |
Min.Working length（mm） | 300 |
Working thickness（mm） | 0-100 |
Abrasive belt motor（kw） | 18.5 |
Rotary brush motor power（kw） | 2.2X3 |
Total Power | 44kw |
Transmission motor power（kw） | 4 |
Lift motor power | 0.55 |
No.1 unit of belt shelf | 210mm |
Adsorption | 11kw 2900RPM |
Controller system | Delta PLC |
Rotary brush size(mm) | 300x300x25 |
Rotary brush quantity | 6 |
Voltage | 220v/380V3PH |
Power | 50/60HZ |
Abrasive belt size（mm） | 1320*2020mm |
Overall dimensions（mm） | Machine :2700*2300*2100mm
Vacuum pump :1000*1000*2000mm |
Gross Weight(with wooden case)（kg） | 3200KGS |
Suitable-for slag removall and surface grinding of thick metall plates, Removal of slag produced by plasma and flame cutting and laser cutting.
