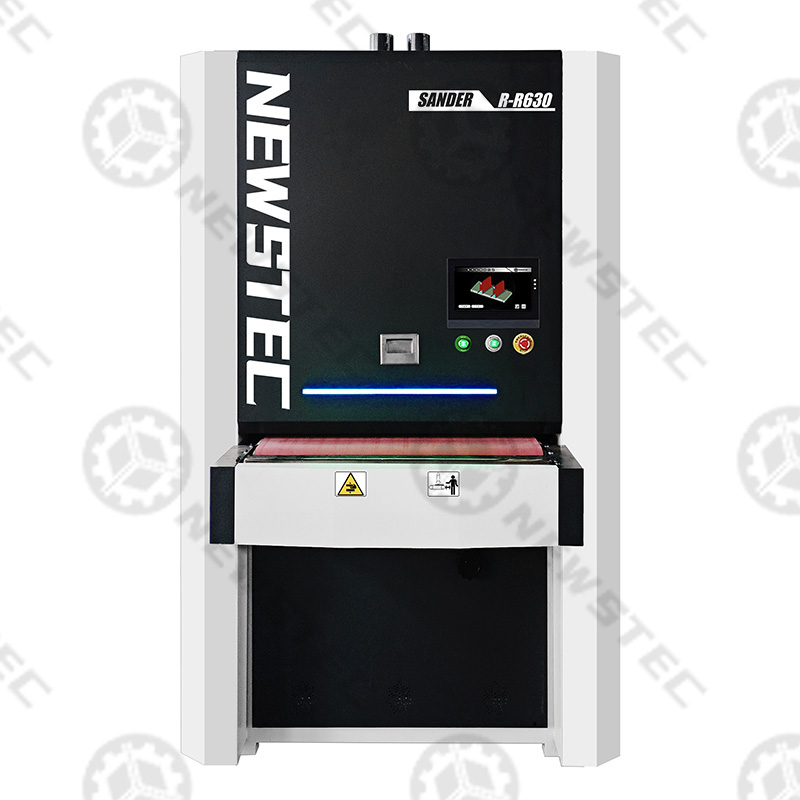

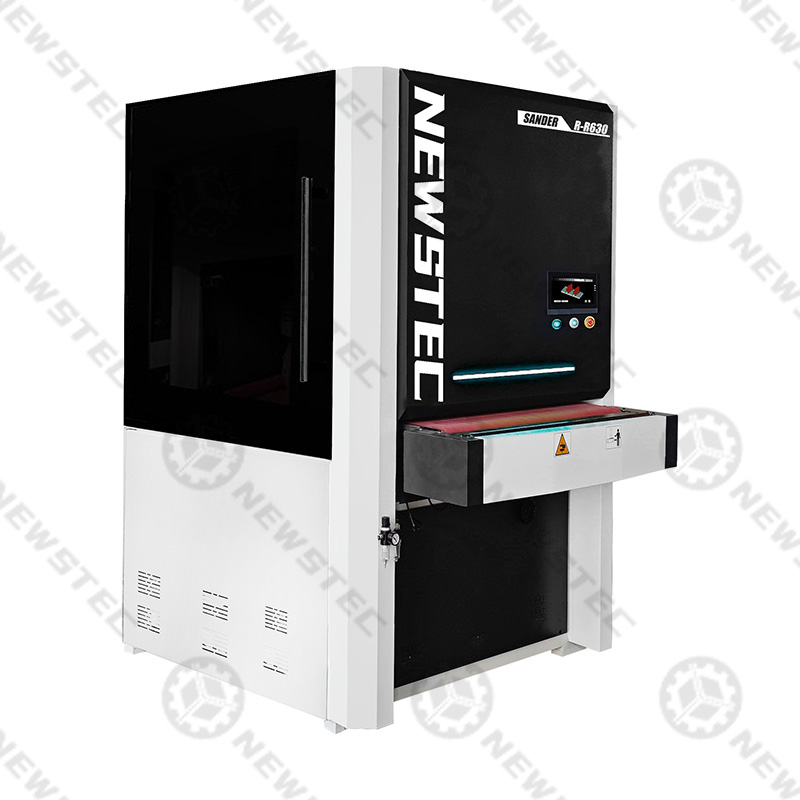

Metal sanding machine is a kind of equipment commonly used for metal surface treatment, its working principle is mainly through high-speed rotating sand belt or grinding wheel friction cutting
of the workpiece, so as to achieve the treatment of the workpiece surface.

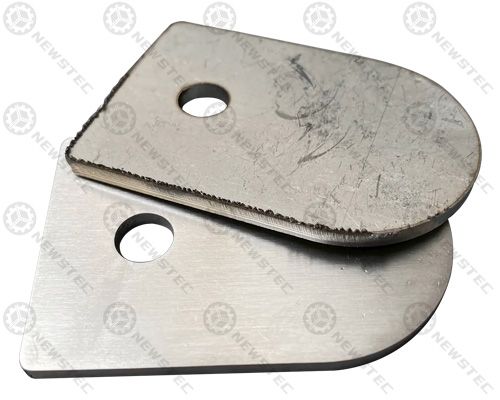

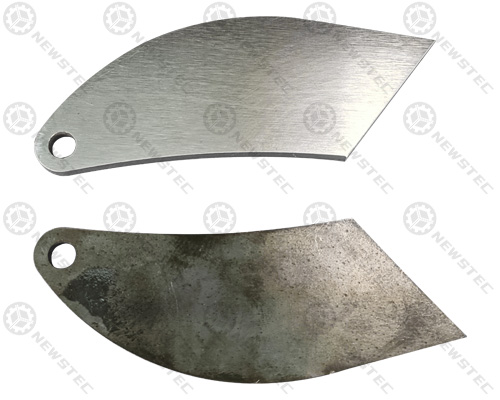

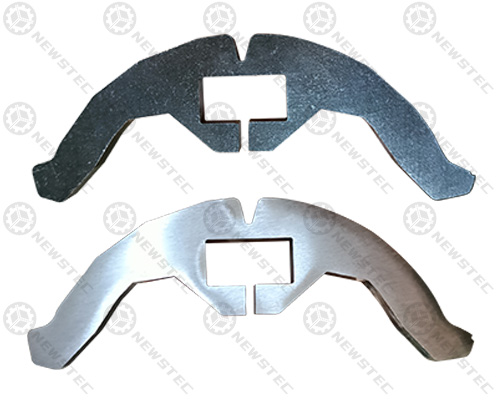

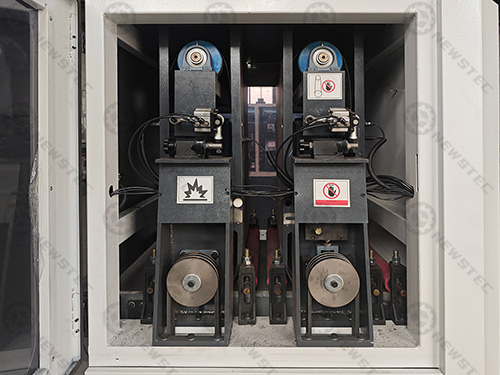

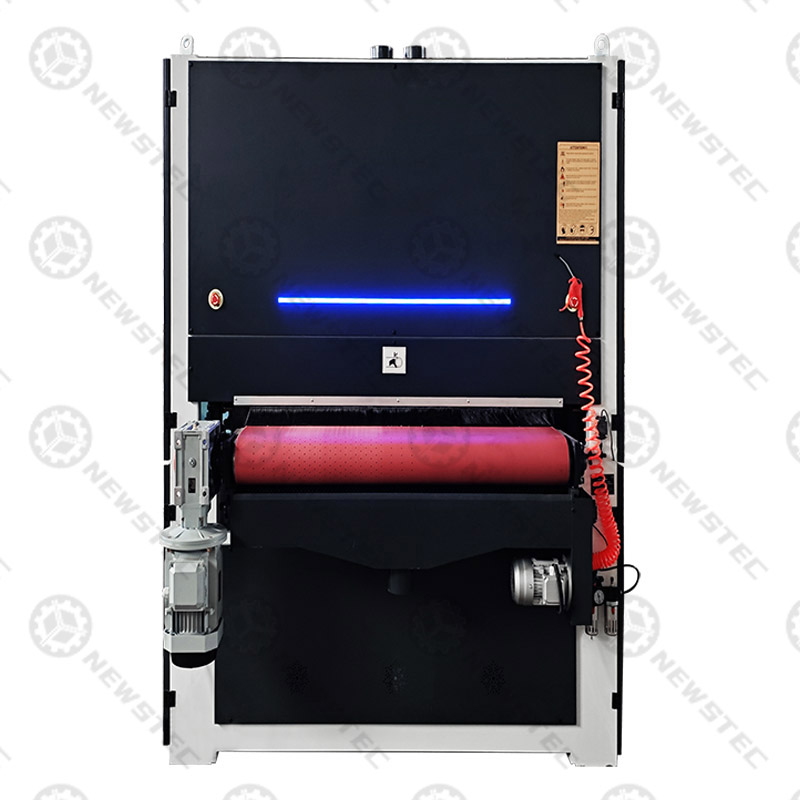

 | SANDING BELT By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs,grinding to remove the oxide layer,deburing,so as to show the metal bright surface, processing plate width 600mm,1000mm,1300mm,1600mm, etc |

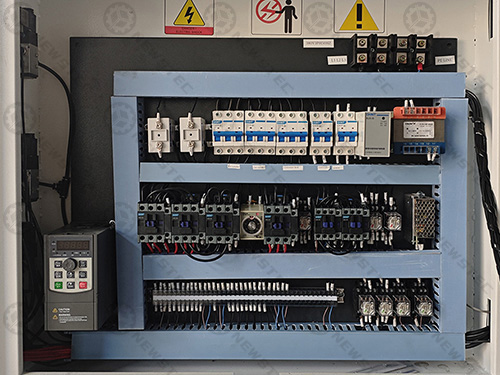

INTERNAL CIRCUIT All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter. |  |

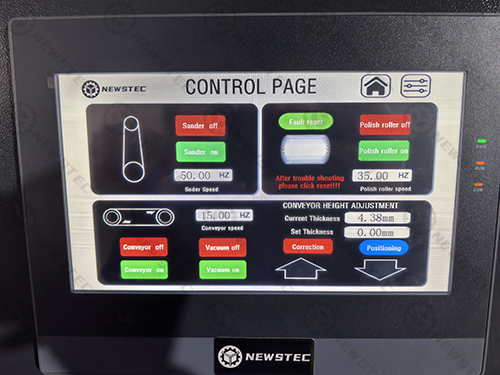

 | CONTROL PANEL The control panel is simple and clear, the self-reset control button has high control precision and easy operation. |

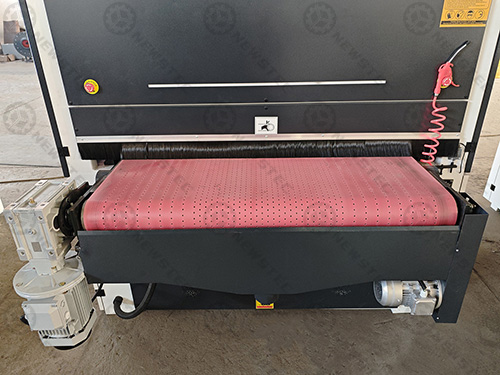

CONVEYOR BELT Working table for the thickened marble, conveyor belt for five layers of rubber material, not afraid of rain, not afraid of sun, long service life |  |
Working width(mm) | 630 |
Min.Working length(mm) | 300 |
Working thickness(mm) | 0-110 |
First motor(kw) | 11 |
Second motor(kw) | 7.5 |
Total Power | 19.97 |
Transmission motor power(kw) | 1.1 |
Abrasive belt size(mm) | 650*1900 |
Overall dimensions(mm) | 1800*1200*2100 |
Weight(kg) | 1300 |
Automatic sheet metal deburring machine mainly includes control system, power system, conveying system, lifting system,
and grinding system. The power system provides machine power. According to the length and thickness of the work-piece,
the corresponding number is input by the control system, the lifting system adjusts the height of the platform,
and the conveying system sends the work-piece to the grinding system to complete the grinding process of the work-piece.
Automatic Wide Belt Sheet Metal Sander wild uesd in sheet metal processing, aviation, aerospace,
electronics, subway accessories, automobiles, food machinery, textile machinery, engineering machinery,
precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, metal decoration, advertising etc.

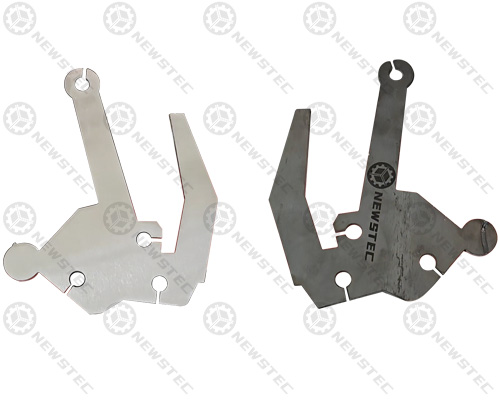

Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
