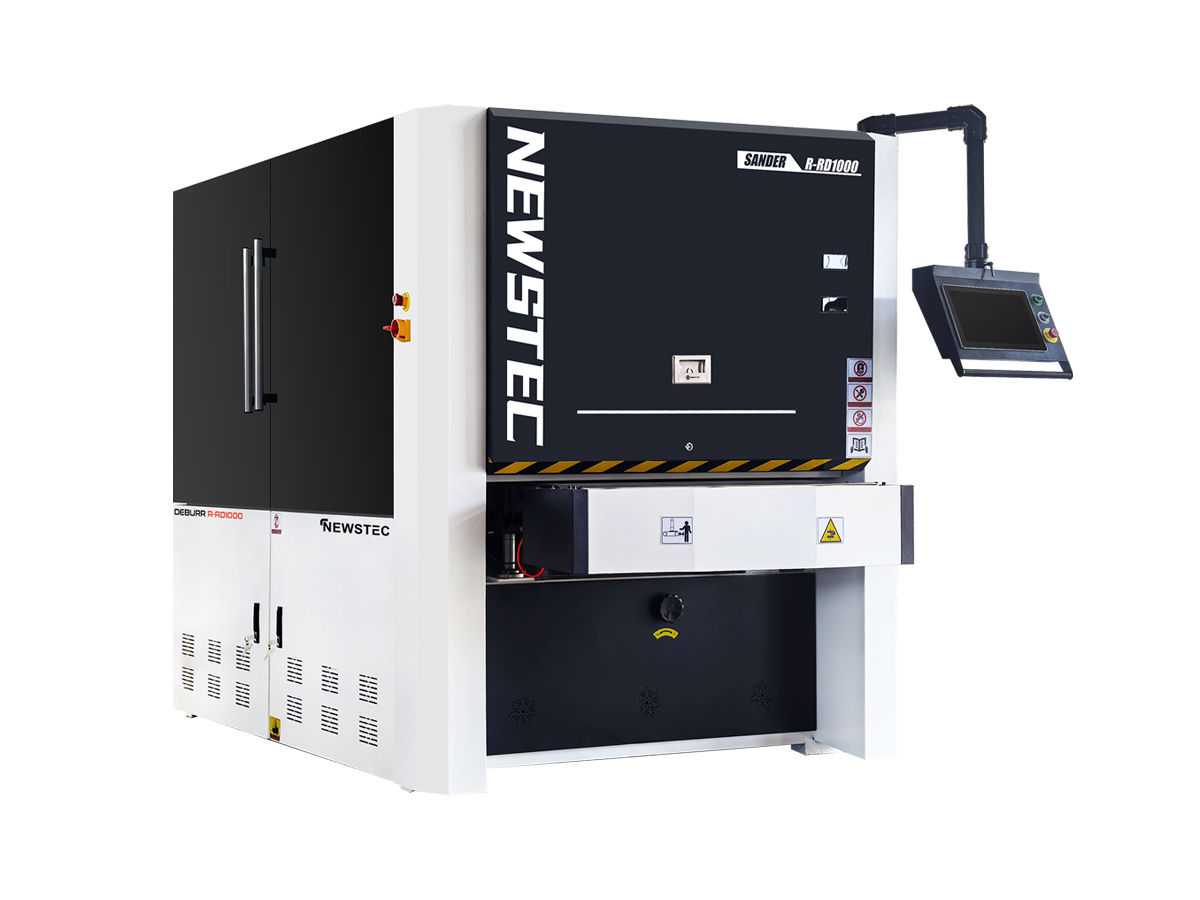

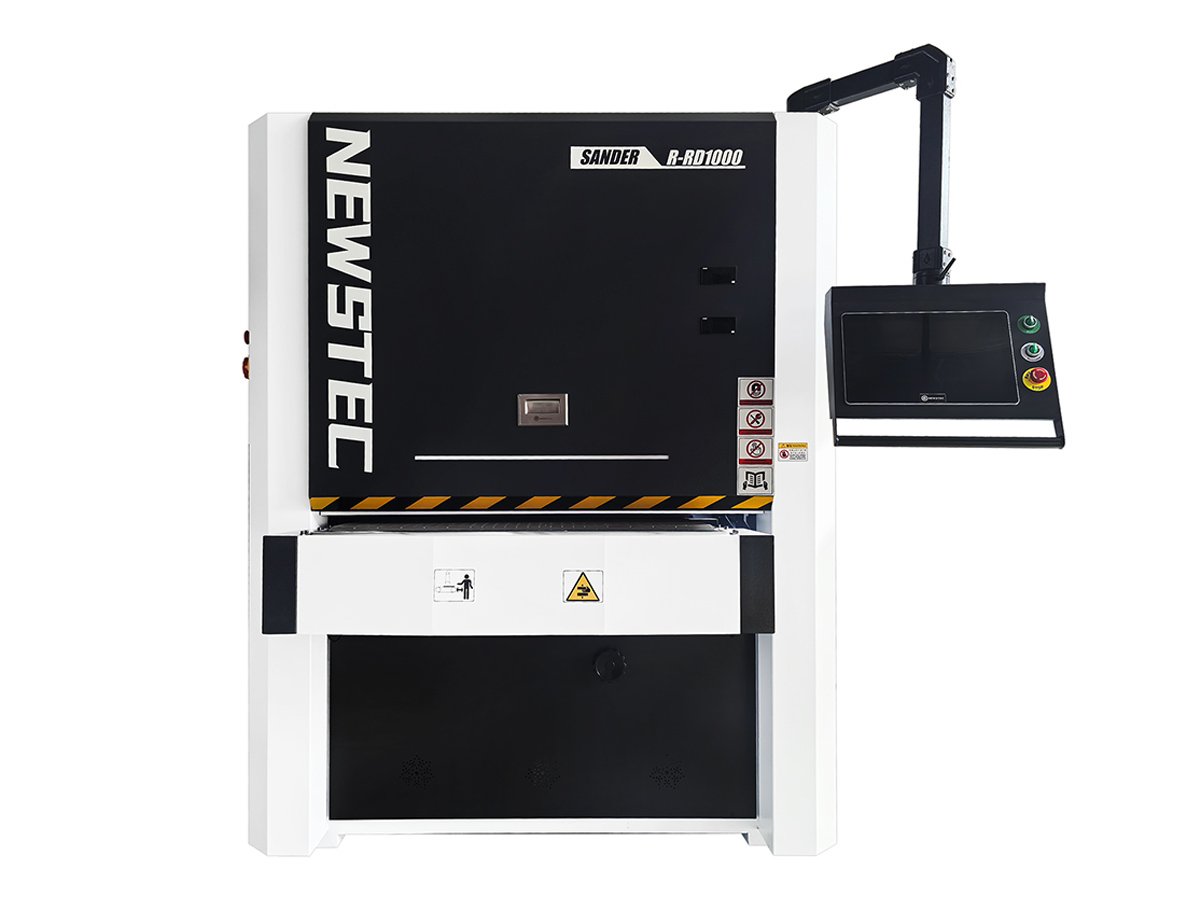

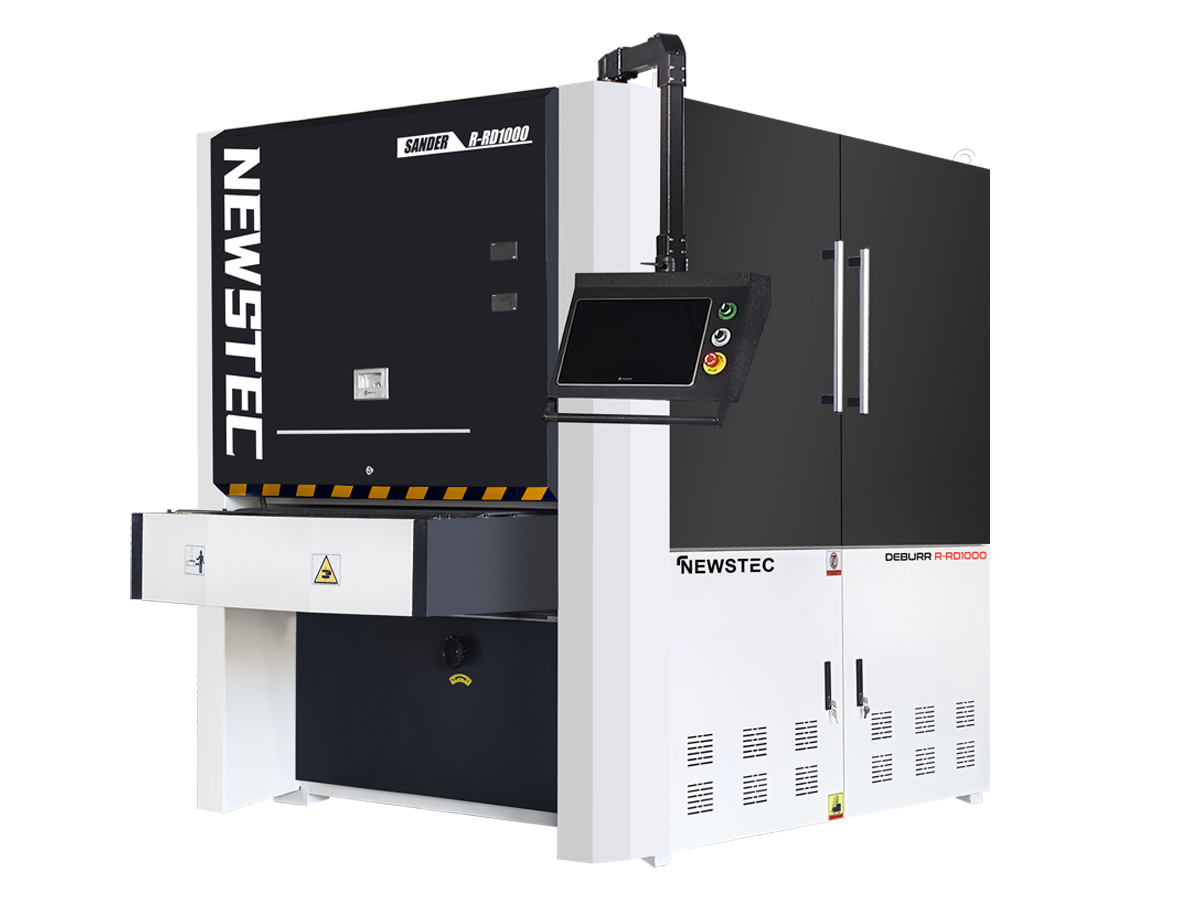

Metal Sheet Deburring Machine Precision Finishing & Edge Polishing Solution
A sheet metal deburring machine is a tool used to remove burrs or rough edges from metal sheets after they have been cut, punched, or stamped.

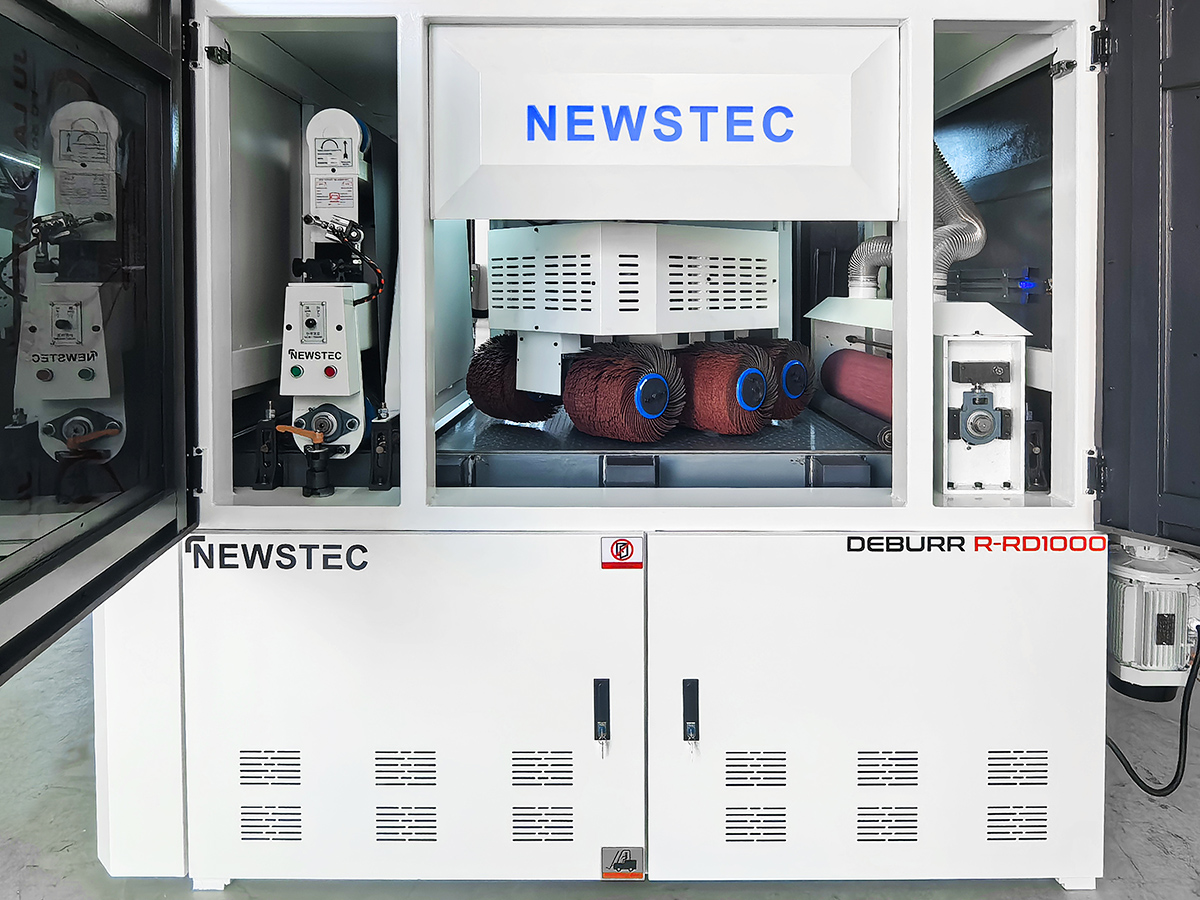

These machines typically use rotating brushes or abrasive belts to grind away the burrs and produce a smooth, polished surface on the metal sheet.
In addition to removing burrs, sheet metal deburring machines can also be used to round off sharp edges, create a uniform finish on the metal surface,
and improve the overall quality of the finished product. They are commonly used in industries such as automotive, aerospace, and electronics manufacturing,
where precision and high-quality finishes are essential.
Working width（mm） | 1600 |
Min.Working length（mm） | 300 |
Working thickness（mm） | 0-100 |
Abrasive belt motor（kw） | 18.5 |
Rotary brush motor power（kw） | 2.2X3 |
Total Power | 44kw |
Transmission motor power（kw） | 4 |
Lift motor power | 0.55 |
No.1 unit of belt shelf | 210mm |
Adsorption | 11kw 2900RPM |
Controller system | Delta PLC |
Rotary brush size(mm) | 300x300x25 |
Rotary brush quantity | 6 |
Voltage | 220v/380V3PH |
Power | 50/60HZ |
Abrasive belt size（mm） | 1320*2020mm |
Overall dimensions（mm） | Machine :2700*2300*2100mm
Vacuum pump :1000*1000*2000mm |
Gross Weight(with wooden case)（kg） | 3200KGS |
Matching laser cutting machine, CNC stamping, a variety of CNC processing or other machining deburring edge production line, equipment through linear processing,
multiple groups of sand line wheel rotation, revolution, alternating, can truly uniform removal of parts surface, contour edge and hole edge burr and uniform chamfering.
In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of
the workpiece, so it is particularly important to choose the correct deburring machine
Application
The application scope of the equipment: It is suitable for flat panel parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys,
various non-ferrous metals, rubber and plastic materials, etc.
