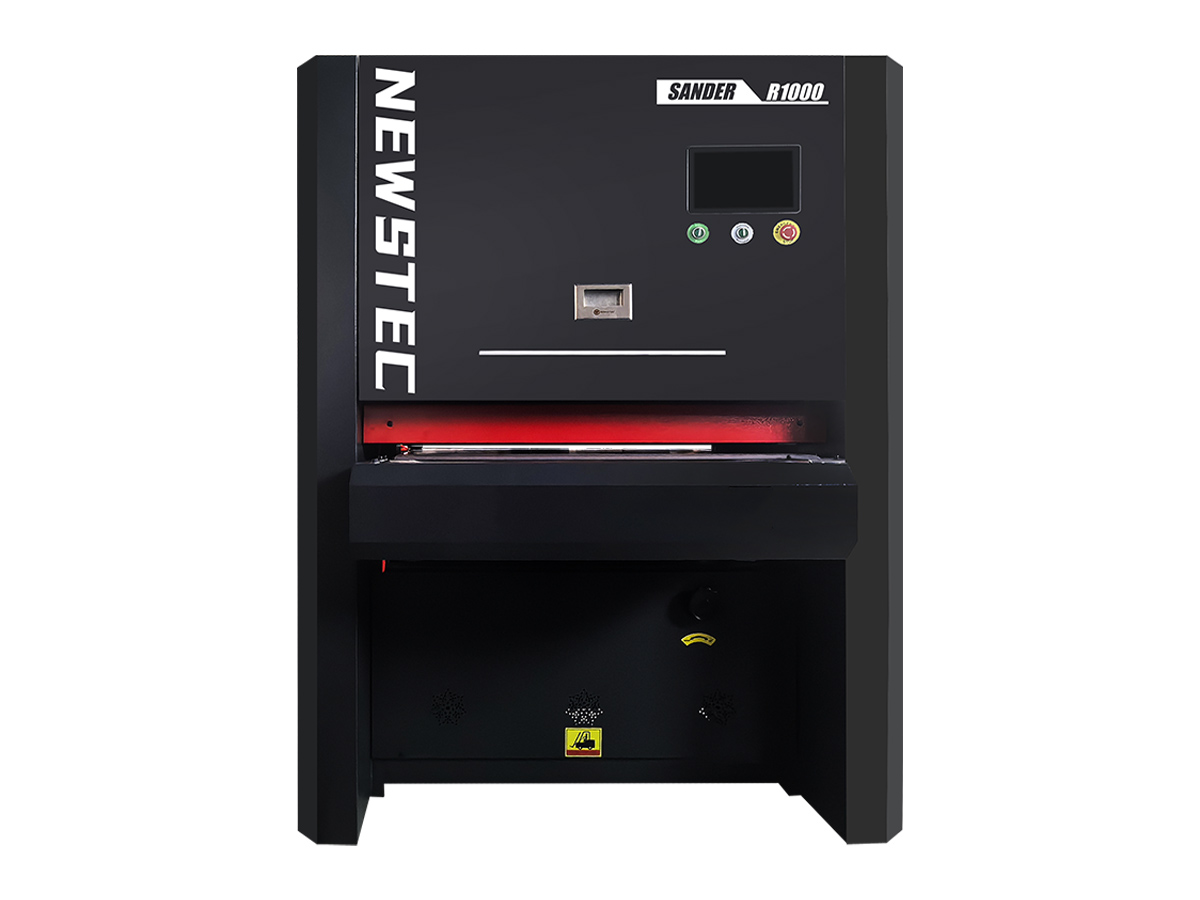

Single-phase economical metal sander for studio use
This device uses single-phase electricity, making it suitable for personal workshops.
Working width(mm) | 1000 |
Min.Working length(mm) | 300 |
Working thickness(mm) | 0-110 |
First motor(kw) | 11 |
Total Power | 14 |
Transmission motor power(kw) | 2.2 |
Abrasive belt size(mm) | 1020X2000 |
Overall dimensions(mm) | 1970×620×2180 |
Weight(kg) | 1000 |

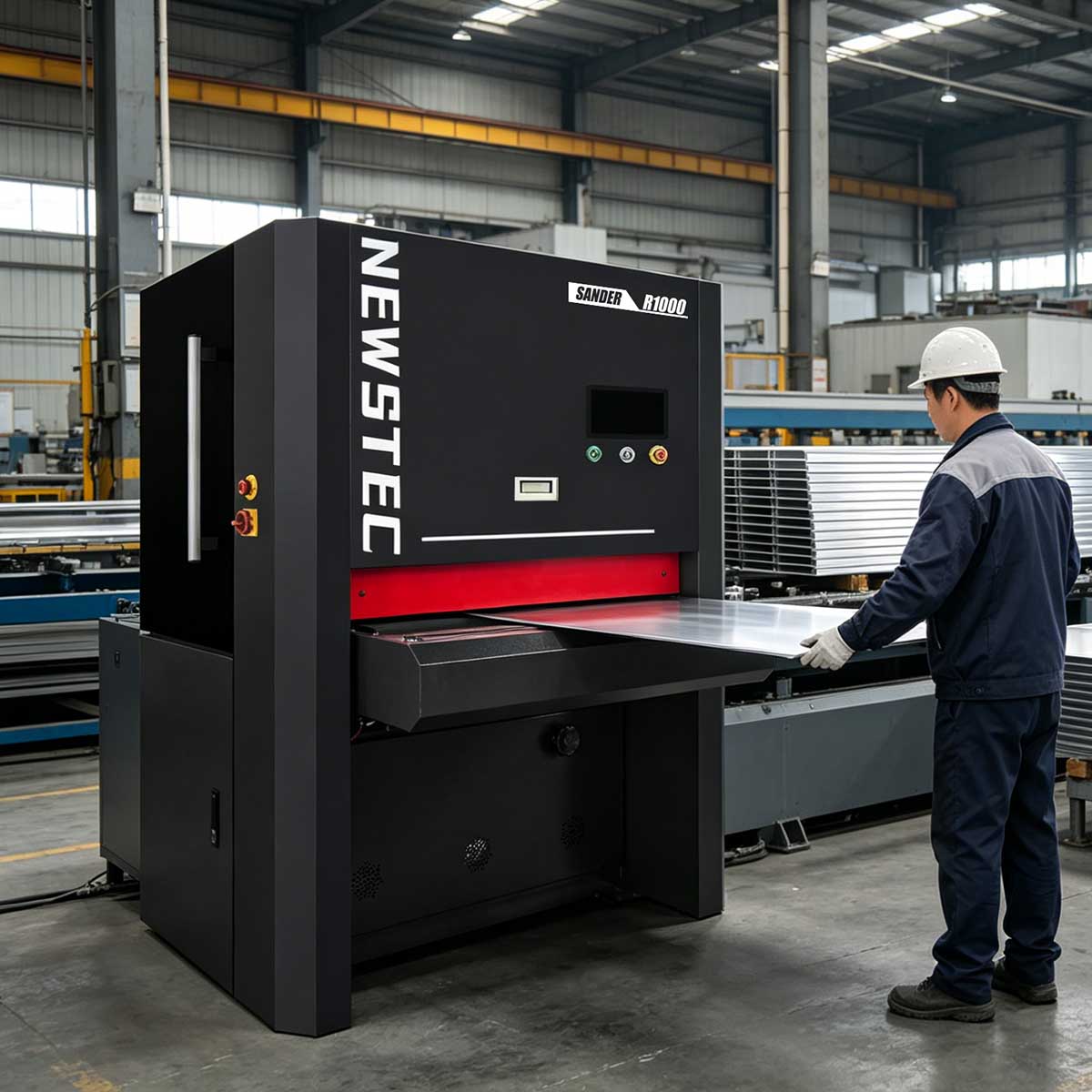

This equipment is equipped with a 11KW motor, a 1000mm machine working width and PLC control, allowing you to achieve the desired precise surface treatment effect. The compact metal wide-belt sanding strip series offers functions such as Metal Deburring, grinding and texture treatment, addressing the surface treatment issues of metal sheets.
Convenient Power Supply: 220V single-phase mains power is readily available in homes and ordinary shops; no additional three-phase power application is required, and it's ready to use immediately upon connection.
Low Installation Costs: No dedicated three-phase wiring, distribution box, or electricity meter is needed; wiring is simple, and construction and modification costs are low.
Compact Size: The compact design and small footprint make it suitable for spaces with limited space.
Low Noise: Smoother operation at the same power output, resulting in lower noise levels during daily use.
Simple Maintenance: The simple circuit structure minimizes malfunctions and simplifies maintenance, requiring no complex operations.
The equipment can be equipped with either a strong magnetic or vacuum worktable to accommodate the processing of workpieces of different sizes. The vacuum worktable can process stainless steel as small as 50x50mm, while the strong magnetic worktable can process carbon steel as small as 20x20mm, which is very user-friendly for small workpieces.

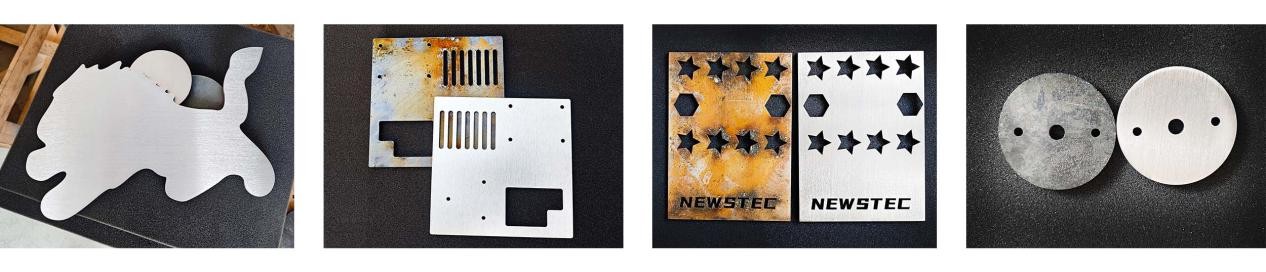

Metal sanders are specialized equipment used in metal processing for deburring, rust removal, oxide scale removal, wire drawing and polishing. They rely on high-speed belts/discs to grind metal surfaces, balancing efficiency and precision, and are suitable for flat workpieces such as carbon steel, stainless steel, and aluminum plates.
