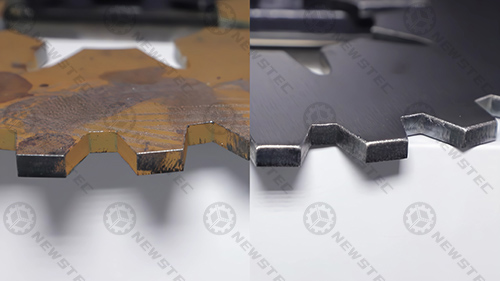

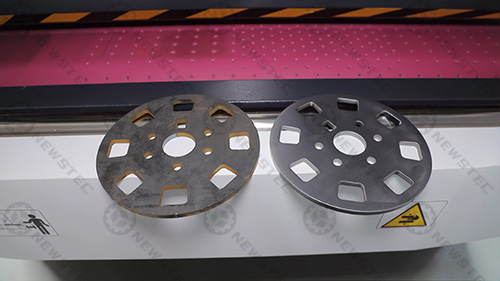

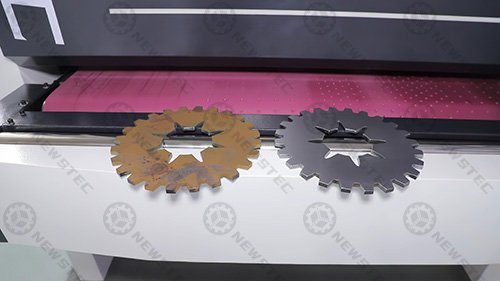

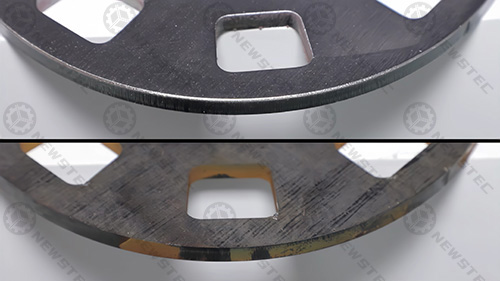

Remove burrs and sharp edges from metal products. Burrs are small metal fragments adhering to the surface of metal sheets, usually located around the
cutting edge. Burrs are caused by cutting processes such as laser, water jet, stamping or plasma cutting.
Deburring, edge rounding, finishing and surface laser oxide removal available for different metals Remove burrs, break edges, chamfers and surface finishing in one go
1. Scope of application of the equipment: suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, etc.
2. Equipment functions: Pre-grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of the surface of workpieces such as laser cutting, shearing blanking, stamping blanking, water jet cutting, plasma cutting, etc.
Working width（mm） | 1600 |
Min.Working length（mm） | 300 |
Working thickness（mm） | 0-100 |
Abrasive belt motor（kw） | 18.5 |
Rotary brush motor power（kw） | 2.2X3 |
Total Power | 44kw |
Transmission motor power（kw） | 4 |
Lift motor power | 0.55 |
No.1 unit of belt shelf | 210mm |
Adsorption | 11kw 2900RPM |
Controller system | Delta PLC |
Rotary brush size(mm) | 300x300x25 |
Rotary brush quantity | 6 |
Voltage | 220v/380V3PH |
Power | 50/60HZ |
Abrasive belt size（mm） | 1320*2020mm |
Overall dimensions（mm） | Machine :2700*2300*2100mm
Vacuum pump :1000*1000*2000mm |
Gross Weight(with wooden case)（kg） | 3200KGS |

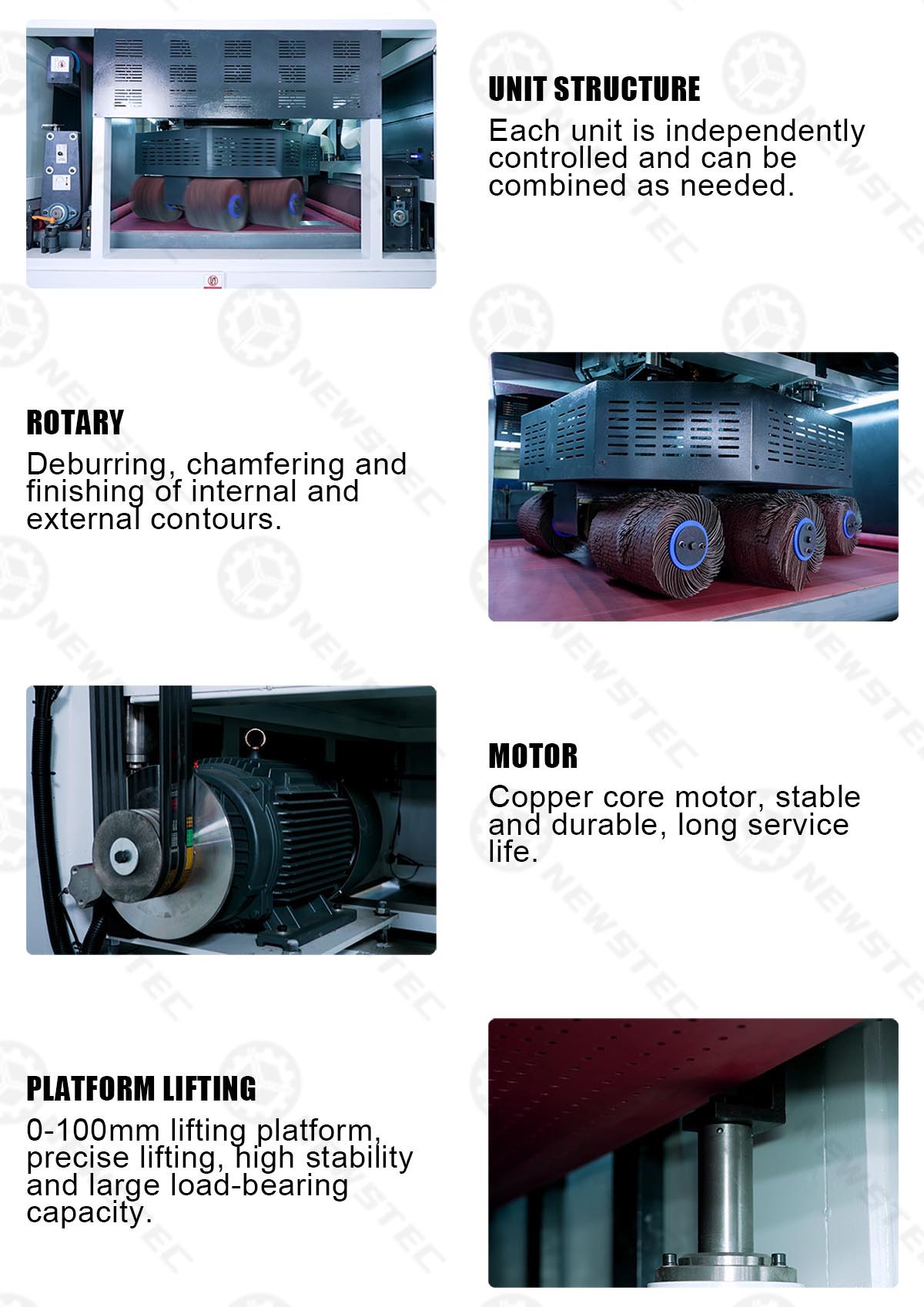

Matching laser cutting machine, CNC stamping, a variety of CNC processing or other machining deburring edge production line, equipment through linear processing,
multiple groups of sand line wheel rotation, revolution, alternating, can truly uniform removal of parts surface, contour edge and hole edge burr and uniform chamfering.
In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of
the workpiece, so it is particularly important to choose the correct deburring machine
Application
The application scope of the equipment: It is suitable for flat panel parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys,
various non-ferrous metals, rubber and plastic materials, etc.
