Main Features
1. The micro-computer front control panel can be operated conveniently and quickly.
2. The feed speed is controlled by the frequency converter, which can be operated flexibly and conveniently.
3. The frame has high strength, large weight and nice stability.
4. The maintenance is convenient, safety performance is excellent, and the failure rate is low.
5. The sanding unit adopts the cast structure with slight deformation and excellent damping performance.
6..High-strength motor and top brand bearing ensure best performance.

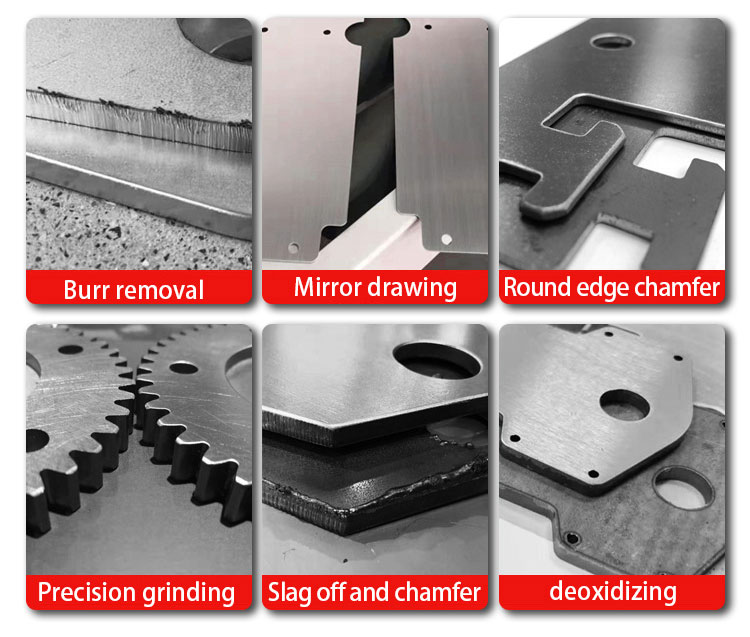

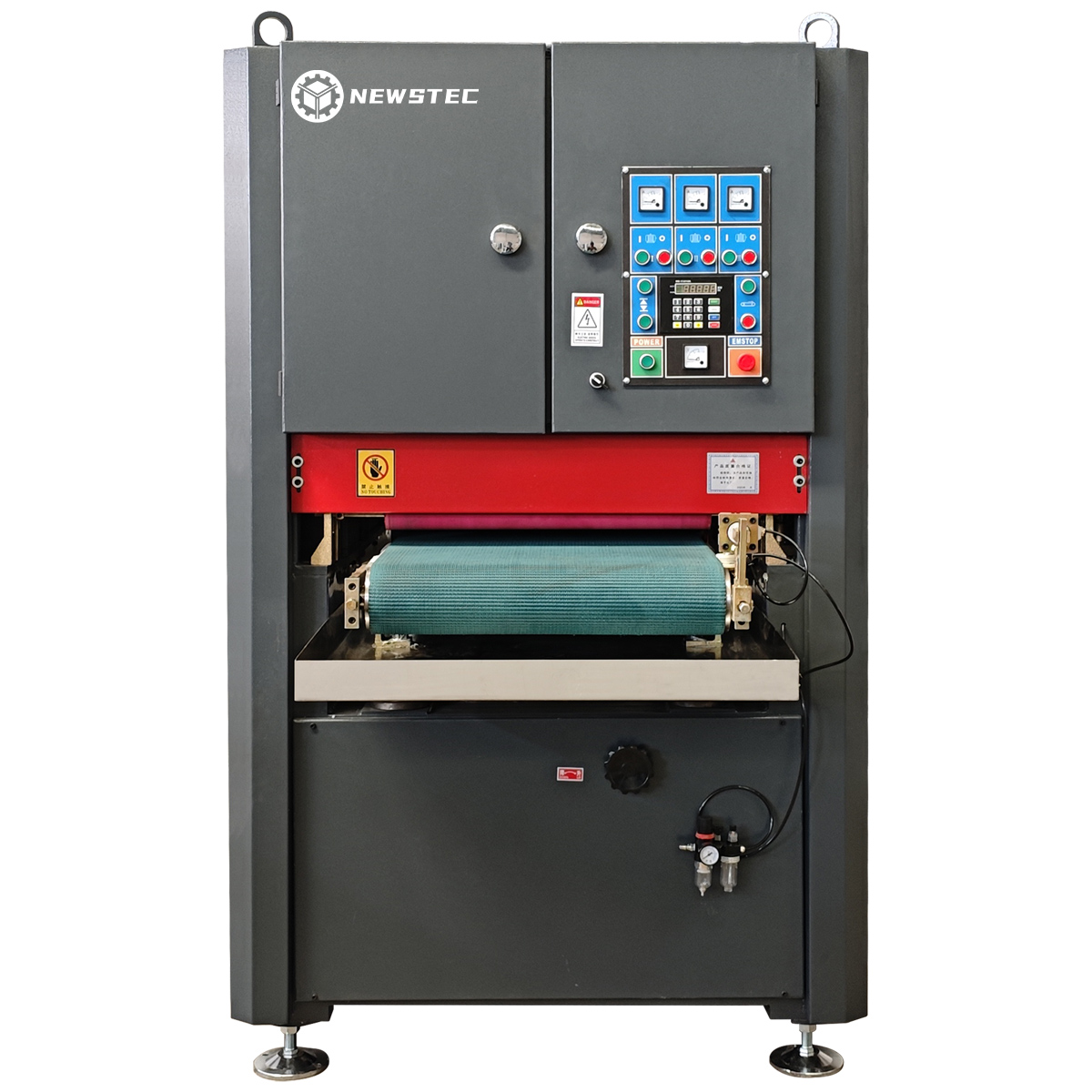

This equipment is a wet belt model with two sand frames. Mainly used to deal with the deburring, workpiece
edge, hole deburring effect, the workpiece surface sanding, make the workpiece surface around and hole
contour edge smooth and round, and realize the metal sheet surface wire drawing, oxidation skin, polishing,
slight chamfering processing. For stamping, shearing, laser cutting, plasma cutting and other processes of
the burr can be removed in a full range of one-time, safe and reliable processing process,so that the
workpiece to achieve the perfect effect.
Production sepcitication

Product Paramenters
Working width(mm) | 630 | 1000 |
Min.Working length(mm) | 300 | 300 |
Working thickness(mm) | 0-110 | 0-110 |
First motor(kw) | 11 | 18.5 |
Second motor(kw) | 7.5 | 15 |
Total Power | 19.97 | 36.55 |
Transmission motor power(kw) | 1.1 | 2.2 |
Abrasive belt size(mm) | 650*1900 | 1020*2200 |
Overall dimensions(mm) | 1800*1200*2100 | 1900*1600*2100 |
Weight(kg) | 1300 | 1800 |
|
|
|

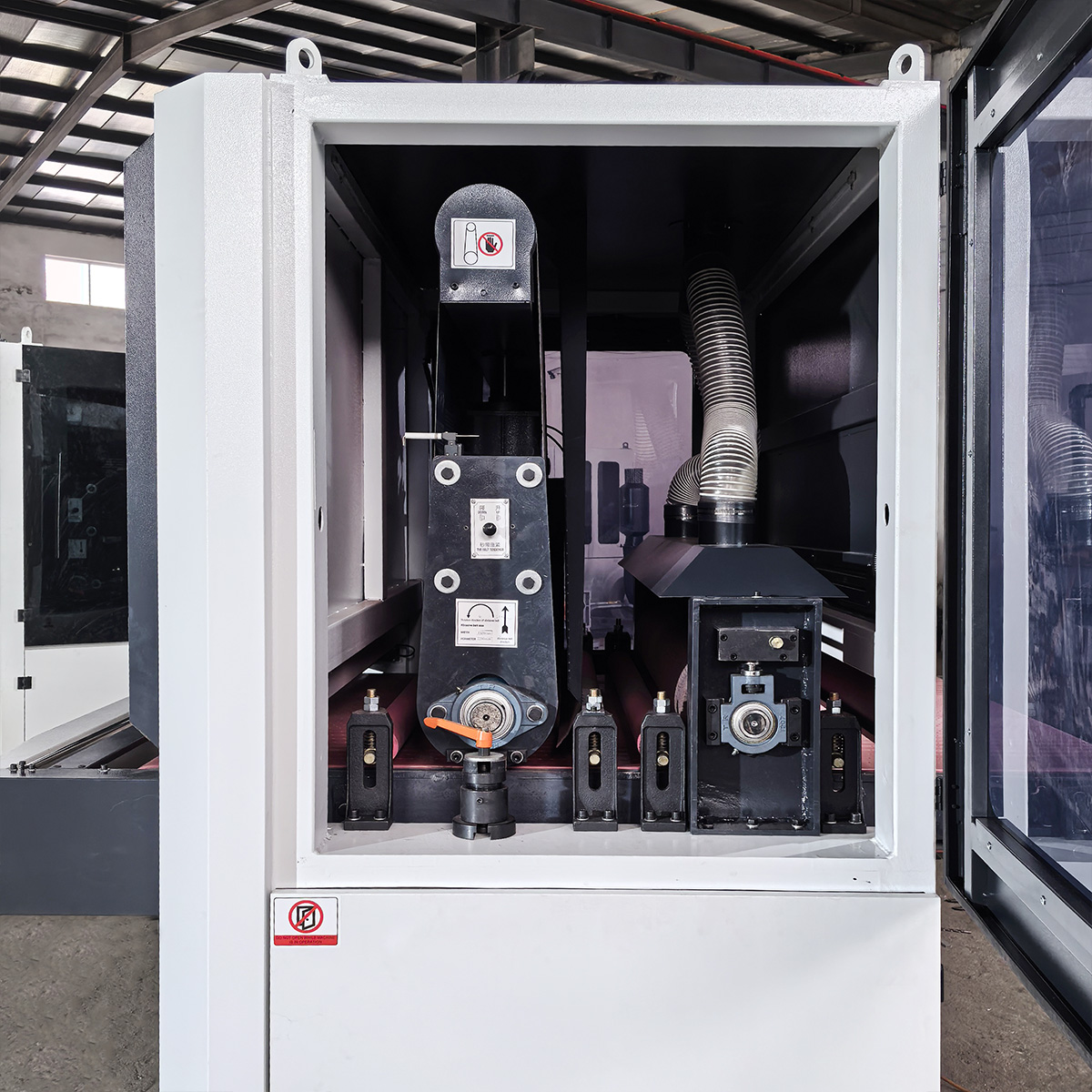

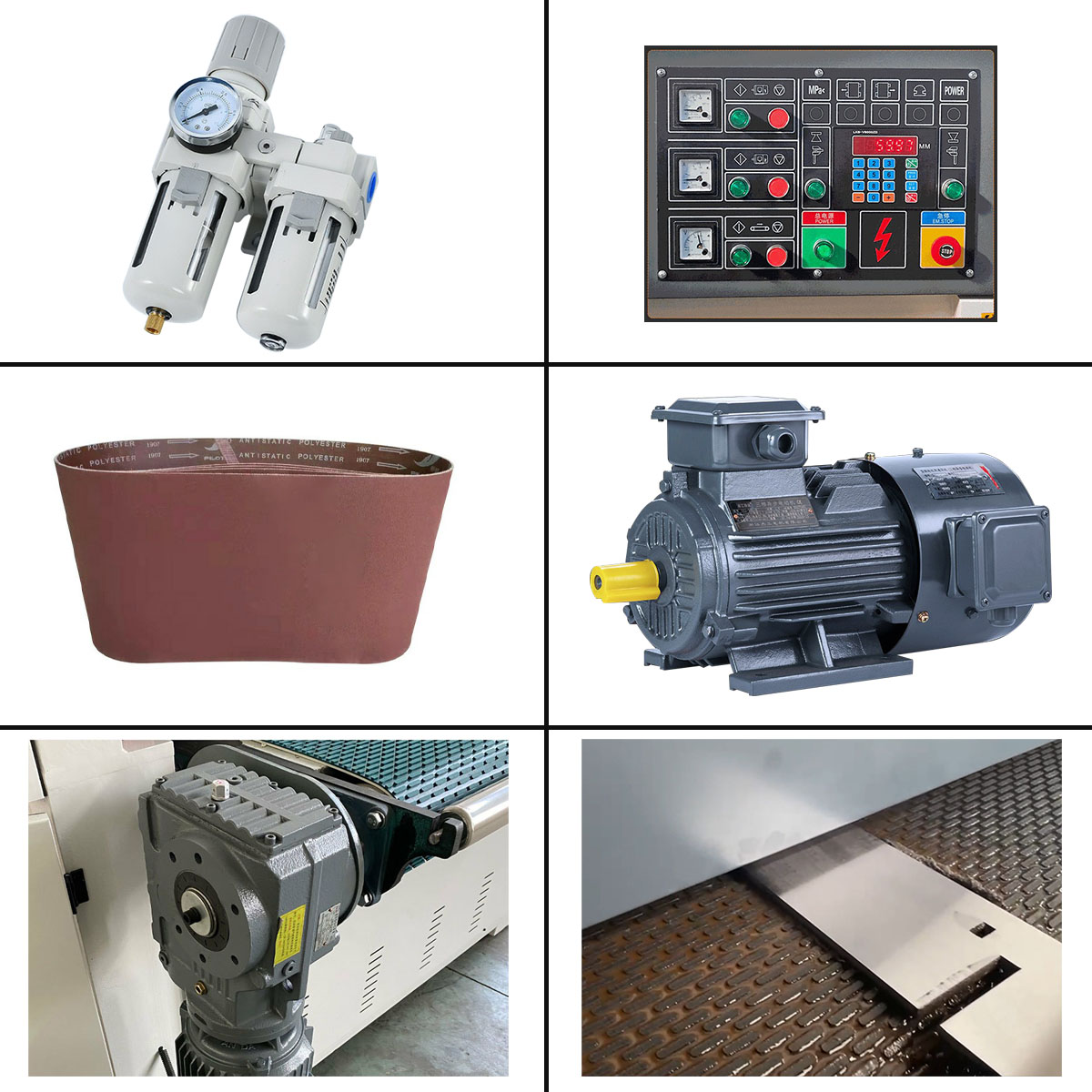

Details Images

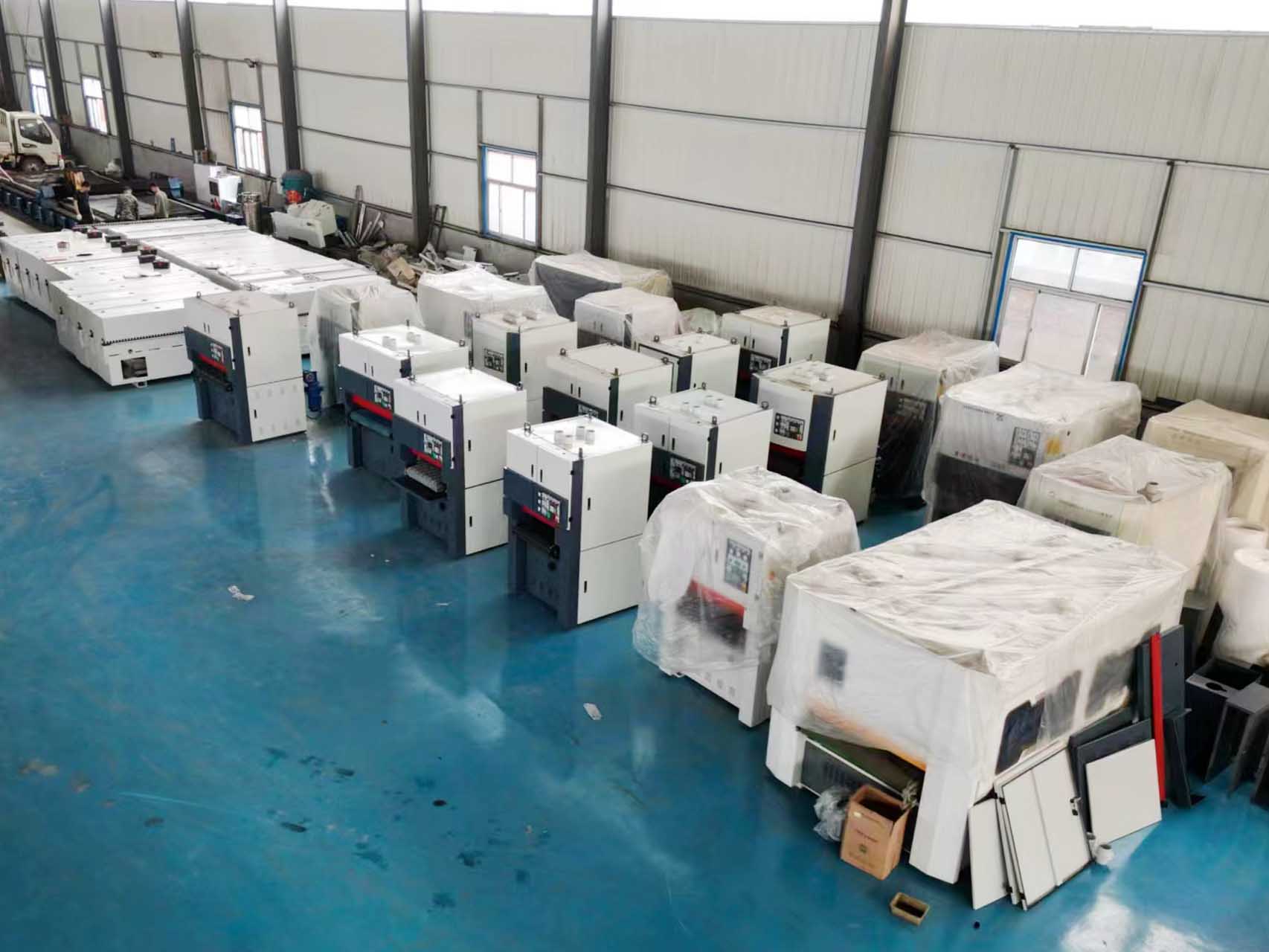

Packing&Transportation

Why Choose Us
1.The body is welded by steel plate, after quenching treatment, good stability, imported
conveyor belt, good reliability and durability
2.The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt with high strength and good stability.
5. The active roller head is always thickened and quenched to ensure the stability and robustness of the driving roller.
6. The thickness display table adopts photoelectric sensor head with high precision and good stability under various
complicated environments.

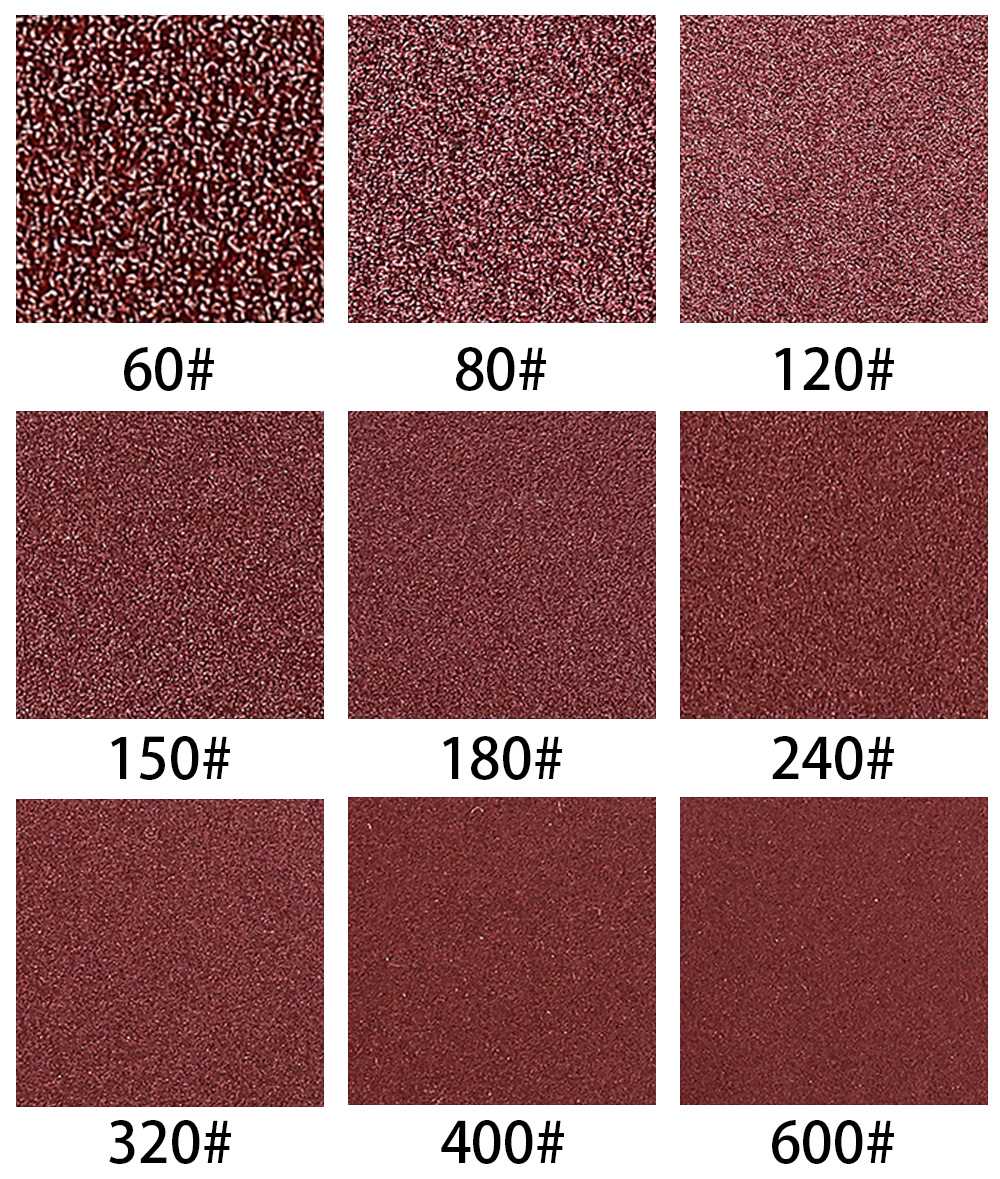

1) Surface deburring, finishing, sand belt can be changed at will the number of eyes product finish will change.
2) It is suitable for removing burrs in the holes of flat or relatively the same flat sheet metal parts processed by CNC
punching and shearing machines; Removal of burr after laser cutting; Flame cutting or plasma cutting slag removal.
3) Instead of burr, use file, scraper or electric and pneumatic tools for grinding process, so that the workpiece is polished
more evenly; Safer, and effectively reduce labor costs and improve production efficiency.
4) The equipment adopts Chint button system, which is simple and convenient to operate. The thickness digital display
can be electrically upgraded and fine-tuned, convenient and quick to adjust the grinding amount
5) The machine uses common consumables in the market, and can also be customized imported sandpaper to improve
production efficiency and meet the special requirements of products.
6) The equipment is equipped with the interface of dust collector to absorb the dust, metal chips and dust generated
in the working process of the equipment. Separate dust removal equipment or existing equipment in the factory can be selected.
